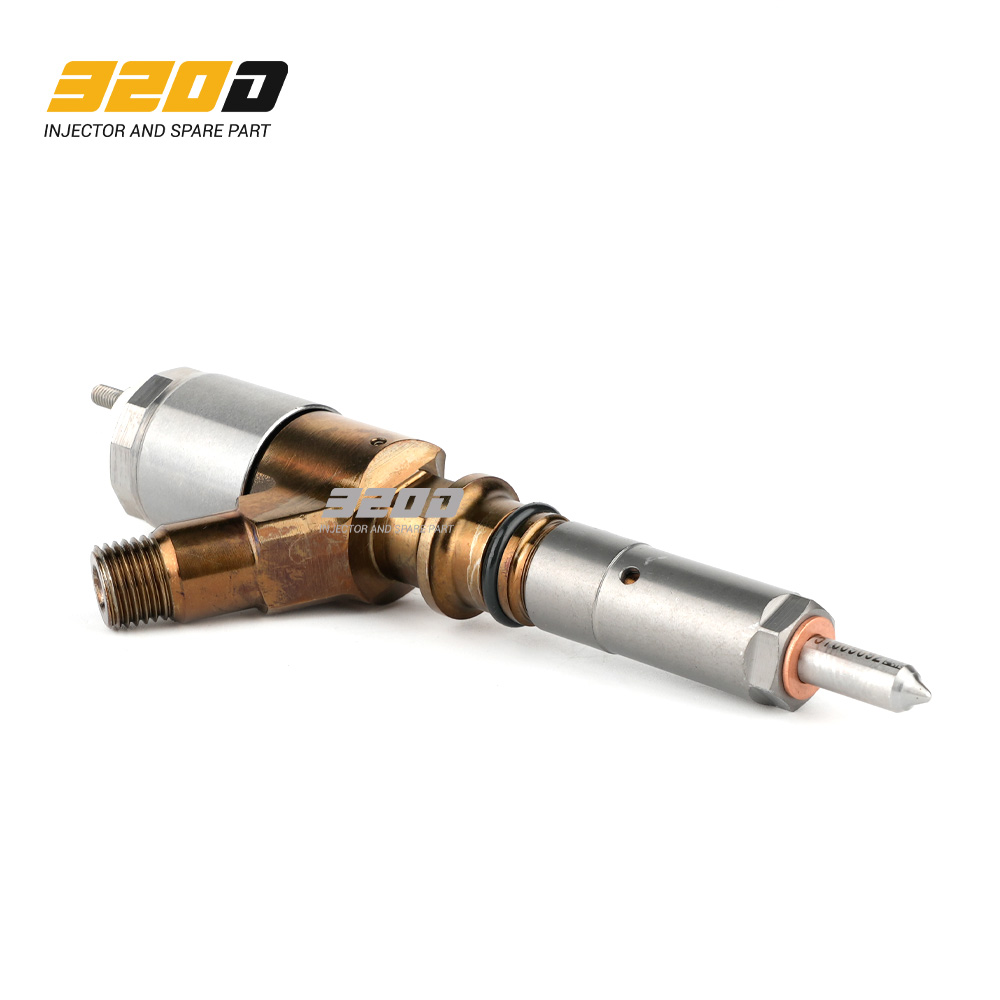

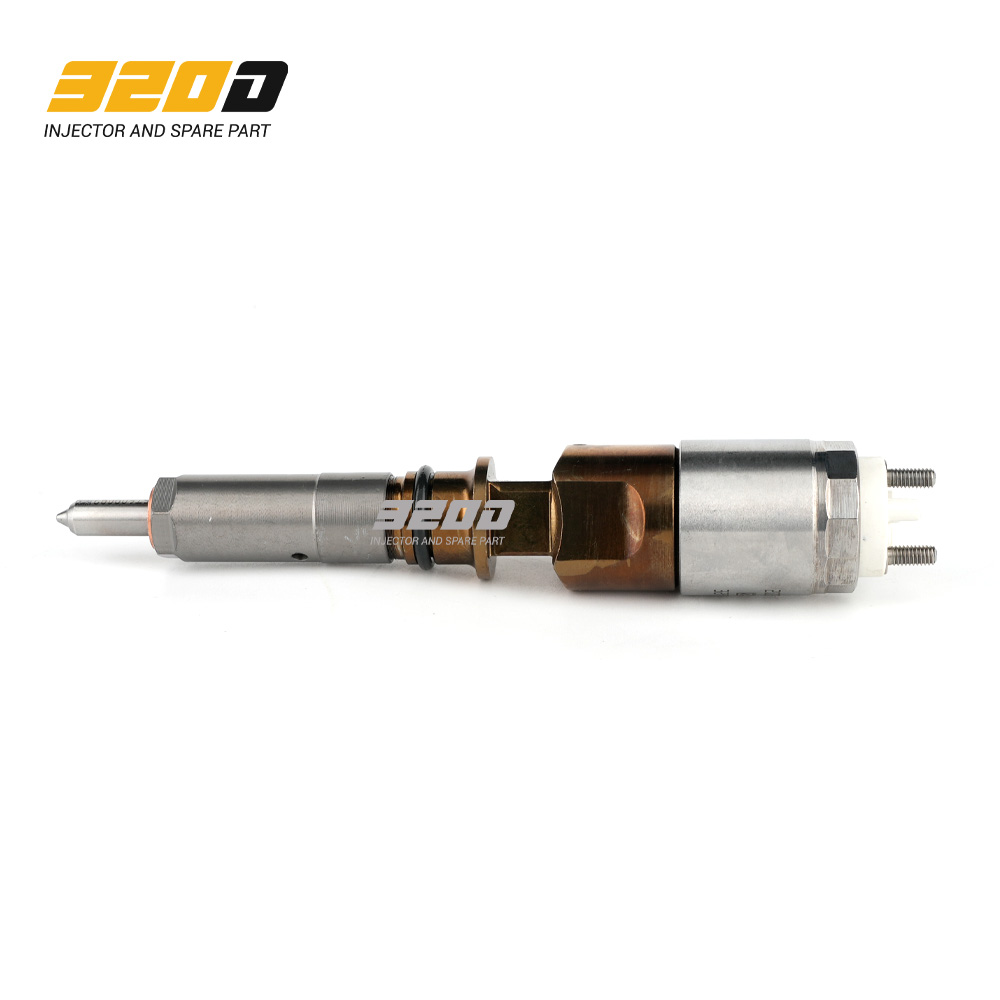

1. 32F61-00022 Fuel Injector Introduction

1.1. 32F61-00022 Fuel Injector Basic Information

Title	Common Rail 320D Fuel Injector 32F61-00022 China Made New
SKU1	G2C632F6100022



1.2. 32F61-00022 Fuel Injector Common Part Number

Fuel Injector Exchange Information

Fuel Injector Part Number	Re-manufactured Part Number
32F61-00022	10R-7676
32F6100022	10R7676



1.3. 32F61-00022 Fuel Injector Parameter

Adaptation System：Common Rail System

Fuel Injector Series：320D C4.2 Series

Fuel Injector Type：Electromagnetic Fuel Injector

Vehicle Configuration Information: 320D Engines



1.4. 32F61-00022 Fuel Injector Specifications and Dimensions

Fuel Injector Size：20cm* 10cm *10cm=2000 cm³(L*W*H=V)

Fuel Injector Net Weight：0.5kg

Fuel Injector Gross Weight：0.55kg

Fuel Injector Quality：China Made New

Package Size：22 cm* 13 cm *13 cm =3718 cm³

Fuel Injector Type：Common Rail Fuel Injector

MOQ：4 Pieces



1.5. 32F61-00022 Fuel Injector Customized Service

(1) Fuel Injector Customized Service: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, fuel injector internal packaging, fuel injector external packaging and labels customized, etc.

(2) Fuel Injector Customized Service Requirements：

The purchase of customized fuel injectors are not less than 10 pieces.

The purchase of customized fuel injector packages are no less than 1000 pieces.

When the Customized products involve the need of specify logo, the OEM manufacturer is asked to provide trademark authorization and the sample of logo image file.

Once the customized fuel injector is sold, it cannot be returned or exchanged if there is no quality problems.



1.6. 32F61-00022 Fuel Injector Quality Control

(1) Fuel Injector Testing

All fuel injectors are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.

(2) Fuel Injector Assembling

For quality control during the production and installation process of injectors, our company strictly follows the standard product installation data and product installation steps for installation and testing, such as injector stroke test, injector solenoid valve tightening torque test, injector nozzle tightening torque test, etc.

(3) Fuel Injector Inspection

The factory inspection of the fuel injector is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same fuel injector for a total of more than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.



1.7. 32F61-00022 Fuel Injector Storage Standard

(1) Choose a Suitable Storage Place

The warehouse and cargo yard where the fuel injector is stored should be kept clean and dry, and away from the factory buildings that generate harmful gases and dust; do not mix with acid, alkali, salt and other substances; the storage place should have a good drainage system; the cargo yard should be flattened with gravel or furnace ash etc. to enhance the water permeability of the surface layer to keep the reservoir area dry.

(2) Strict Requirements of Warehousing

Strict inspections should be carried out when the fuel injectors are put into storage, the surface cleaning work should be done well to remove water traces, oil stains, ash and other dirt, remove the rust and do anti-rust treatment in time. Packaged fuel injectors must be protected from damage.

(3) Keep The Warehouse Dry and Preventing Moisture

The relative humidity is usually below 70% for the fuel injectors placed in the room, and the corrosion of the fuel injectors is significantly reduced.

Fuel injectors must be stored in the warehouse, and they are forbidden to store in the same warehouse with commodities with high water content.

(4) Stack Properly

After the fuel injector is exposed to rain, the corrosion rate will increase significantly. The purpose of sealing is to isolate the fuel injector from rainwater and humid air, so the warehouse window should be checked in time to avoid rainwater entering the warehouse.

If the fuel injector package is damaged, it should be repaired or replaced; when the package is damp, the packaging material should be dried; if the original anti-corrosion and oil applied at the factory is found to be damaged or dried up, it should be cleaned and re-applied oil in time.

1. It is forbidden to leave the fuel injectorexposed in the air for a long time.
2. It is forbidden to store acid, alkali, saltand other substances together with the fuel
3. The unpacked fuel injectormust be rust-proof during secondary storage.



1.8. 32F61-00022 Fuel Injector Packing

Domestic Express Packaging：Usually wrapped in waterproof scotch tape, such as picture No.1.

International Express Packaging：Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 2.

Pallet Shipping：Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 3,also, the products can be packaged according to customers’ requirements.

1. The packing tray is made of plastic and can be recycled.
2. Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.
3. Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.





Pic No. 1

Domestic Express Packaging: Wrapped by Transparent tape



 Pic No. 2

International Express Packaging：Wrapped with yellow tape after wrapping black protective film

Pic No. 3

Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap

and bind with cable ties
